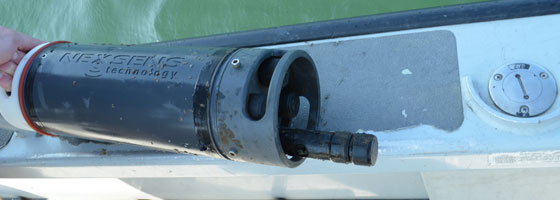

Submersible Data Logger: SDL500

By on August 18, 2009

The SDL500 Submersible Data Logger is a rugged, self-powered remote data logging system for deploying environmental sensors in streams, rivers, wetlands, coastal waters, sewers, and culverts without fear of accidental flooding. The system is configured with five sensor ports for connection to industry-standard digital and analog interfaces including RS-485, SDI-12, 1-wire temp string, 0-2.5 VDC, pulse count, and more. Each sensor port offers a UW receptacle with double O-ring seal for a reliable waterproof connection. Unlike many data loggers, the SDL500 is truly submersible. The housing and battery compartment are completely sealed and waterproof.

With this submersible data logger, it’s possible to bottom-deploy temperature strings, water quality sensors, underwater PAR sensors, and more.

With this submersible data logger, it’s possible to bottom-deploy temperature strings, water quality sensors, underwater PAR sensors, and more.

When it comes to field ruggedness, the NexSens SDL500 is in a class of its own. The housing is constructed of impact-resistant PVC and includes two elastomer bumpers for long-term deployment in close-fitting pipes and buoy ports. Internal circuit boards and communication modules are shock mounted and all access ports incorporate redundant sealing. The SDL500 withstands extreme wave action, drops, floods, periodic & long-term deployment underwater, and more. The optional radio and cellular antennas are also waterproof.

The SDL500 can be powered autonomously by eight D-cell alkaline batteries. Optional solar power kits provide long-term continuous operation and solar charging. The data logger incorporates the same analog and digital interfaces as the popular NexSens iSIC data loggers. There are a wide variety of common sensor connections, and user-supplied sensor cable assemblies can also be connectorized and tested at the factory for SDL500 integration. With this sensor interface versatility, the measurement possibilities are endless.

For more information on the NexSens SDL500 Submersible Data Logger, call 888.426.2151 or visit nexsens.com.
