Solinst Model 101D Water Level DrawDown Meters

The Solinst 101D Water Level DrawDown Meter has all of the same qualities as the well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode.
Starting At $677.35
Stock Check Availability
Key Features
  • Both static water level and drawdown modes in one meter
  • One convenient toggle makes it easy to switch between two functions
  • Uses the same robust, submersible probe as the 101 P7 Water Level Meter

Overview
The Solinst 101D Water Level DrawDown Meter has all of the same qualities as the well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode. One simple toggle switches between static water level and drawdown measurements. Water level mode allows accurate depth to water measurements in wells, boreholes, standpipes and tanks. The drawdown function is used to monitor falling hydraulic head during low flow sampling, pumping and other aquifer/well tests. It also ensures a pump’s intake remains submerged during purging or well development.

Mechanics

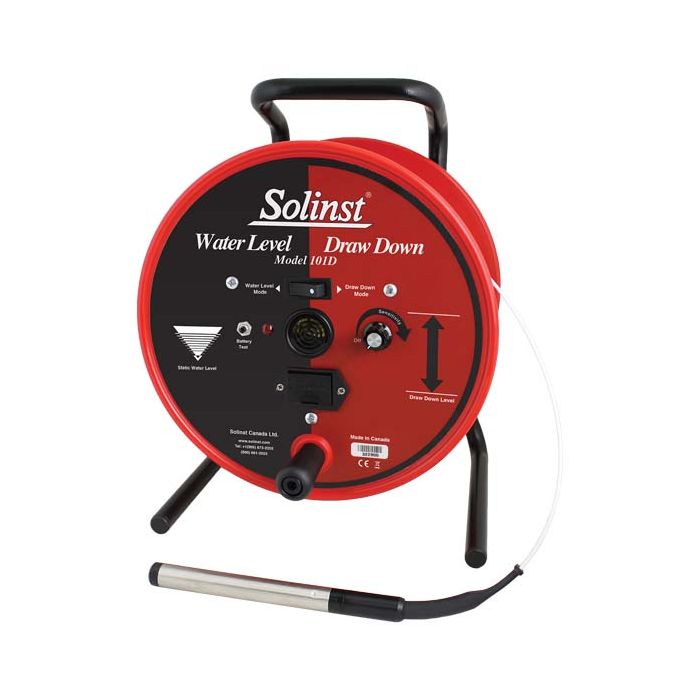

The 101D Water Level DrawDown Meter uses a corrosion-resistant stainless steel probe connected to clearly marked flat tape, fitted on a well-designed reel. It is powered by a standard 9 volt battery. In water level mode, when the zero point on the probe enters water, an electronic circuit is completed, activating the buzzer and light. The depth to water is then read off the tape. In drawdown mode, the circuit is reversed—the buzzer and light are triggered when the probe is in air. The battery test button can check the circuit in both water level and drawdown modes. The on/off sensitivity control allows the buzzer to be turned down in cascading water and ensures a clear signal in high and low conductivity conditions.

  • (1) Model 101D Water Level DrawDown Meter
  • (1) Tape guide/datum
Questions & Answers
No Questions
Did you find what you were looking for?
Key Features
  • Both static water level and drawdown modes in one meter
  • One convenient toggle makes it easy to switch between two functions
  • Uses the same robust, submersible probe as the 101 P7 Water Level Meter

Overview
The Solinst 101D Water Level DrawDown Meter has all of the same qualities as the well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode. One simple toggle switches between static water level and drawdown measurements. Water level mode allows accurate depth to water measurements in wells, boreholes, standpipes and tanks. The drawdown function is used to monitor falling hydraulic head during low flow sampling, pumping and other aquifer/well tests. It also ensures a pump’s intake remains submerged during purging or well development.

Mechanics
The 101D Water Level DrawDown Meter uses a corrosion-resistant stainless steel probe connected to clearly marked flat tape, fitted on a well-designed reel. It is powered by a standard 9 volt battery. In water level mode, when the zero point on the probe enters water, an electronic circuit is completed, activating the buzzer and light. The depth to water is then read off the tape. In drawdown mode, the circuit is reversed—the buzzer and light are triggered when the probe is in air. The battery test button can check the circuit in both water level and drawdown modes. The on/off sensitivity control allows the buzzer to be turned down in cascading water and ensures a clear signal in high and low conductivity conditions.

  • (1) Model 101D Water Level DrawDown Meter
  • (1) Tape guide/datum
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Product Description
Price
Stock
Select
Solinst Model 101D Water Level DrawDown Meters
114115
Model 101D water level drawdown meter with P7 probe & imperial increments, 100 ft.
$677.35
Check Availability
$677.35
Solinst Model 101D Water Level DrawDown Meters
114121
Model 101D water level drawdown meter with P7 probe & metric increments, 30m
$677.35
Check Availability
$677.35
Solinst Model 101D Water Level DrawDown Meters
114116
Model 101D water level drawdown meter with P7 probe & imperial increments, 200 ft.
$848.35
Check Availability
$848.35
Solinst Model 101D Water Level DrawDown Meters
114122
Model 101D water level drawdown meter with P7 probe & metric increments, 60m
$848.35
Check Availability
$848.35
Solinst Model 101D Water Level DrawDown Meters
114117
Model 101D water level drawdown meter with P7 probe & imperial increments, 300 ft.
$1,019.35
Check Availability
$1,019.35
Solinst Model 101D Water Level DrawDown Meters
114123
Model 101D water level drawdown meter with P7 probe & metric increments, 100m
$1,019.35
Check Availability
$1,019.35
Solinst Model 101D Water Level DrawDown Meters
114118
Model 101D water level drawdown meter with P7 probe & imperial increments, 500 ft.
$1,490.55
Check Availability
$1,490.55
Solinst Model 101D Water Level DrawDown Meters
114124
Model 101D water level drawdown meter with P7 probe & metric increments, 150m
$1,490.55
Check Availability
$1,490.55
Model 101D water level drawdown meter with P7 probe & imperial increments, 750 ft.
114119
Model 101D water level drawdown meter with P7 probe & imperial increments, 750 ft.
$1,918.05
Check Availability
$1,918.05
Solinst Model 101D Water Level DrawDown Meters
114125
Model 101D water level drawdown meter with P7 probe & metric increments, 250m
$1,918.05
Check Availability
$1,918.05
Solinst Model 101D Water Level DrawDown Meters
114120
Model 101D water level drawdown meter with P7 probe & imperial increments, 1000 ft.
$2,345.55
Check Availability
$2,345.55
Solinst Model 101D Water Level DrawDown Meters
114126
Model 101D water level drawdown meter with P7 probe & metric increments, 300m
$2,345.55
Check Availability
$2,345.55
Solinst Model 101D Water Level DrawDown Meters
116095
Model 101D water level drawdown meter with P7 probe & imperial increments, 1250 ft.
$2,914.60
Check Availability
$2,914.60
Solinst Model 101D Water Level DrawDown Meters
114704
Model 101D water level drawdown meter with P7 probe & metric increments, 400m
$2,914.60
Check Availability
$2,914.60
Solinst Model 101D Water Level DrawDown Meters
114356
Model 101D water level drawdown meter with P7 probe & imperial increments, 2000 ft.
$4,229.40
Check Availability
$4,229.40
Solinst Model 101D Water Level DrawDown Meters
114326
Model 101D water level drawdown meter with P7 probe & metric increments, 500m
$4,229.40
Check Availability
$4,229.40
