Van Essen TD-Diver Water Level Loggers

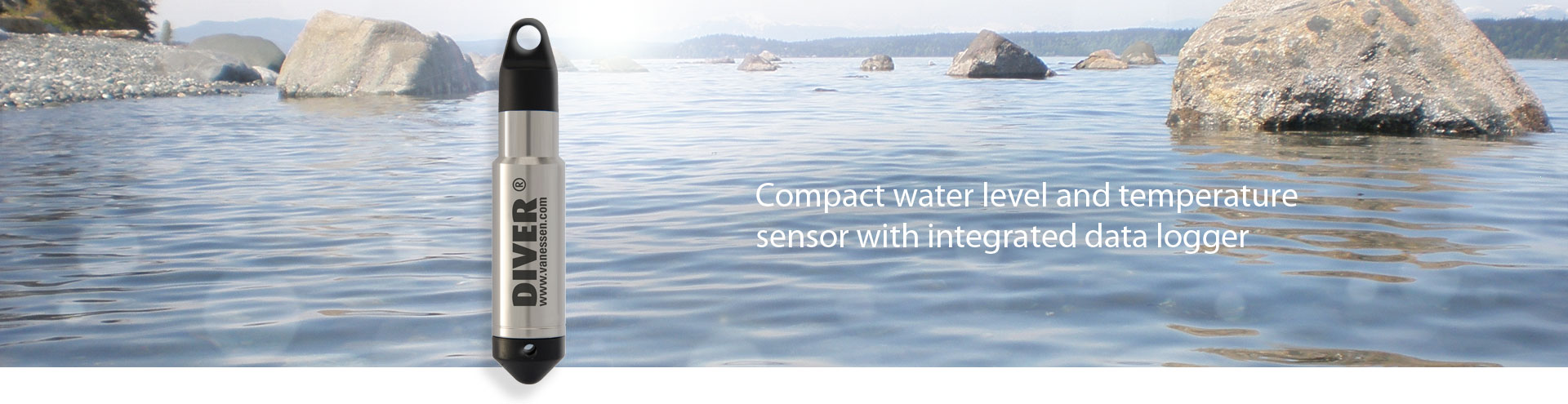

The Van Essen TD-Diver is a reliable instrument used for the autonomous measuring and recording of groundwater levels and temperature.

Features

  • Compact size: 22mm diameter x 110mm length
  • Stores 72,000 records of time stamp, pressure and temperature with backup
  • Continuous and fixed length memory (linear sample method)
$717.81
Stock Check Availability
Van Essen TD-Diver Water Level Loggers

Overview
The Van Essen TD-Diver is a reliable instrument for autonomous measuring and recording of groundwater level and temperature. Its internal memory of 72,000 measurements per parameter provides sufficient capacity to perform nearly one measurement every hour for 8 years. A new backup memory feature enhances data integrity. For each measurement, the Diver registers the date and time, groundwater level, and temperature.

Precision
The Van Essen TD-Diver is an easy-to-use datalogger featuring state-of-the-art electronics and a robust high-precision pressure sensor for long-term accuracy. The absolute pressure sensor requires minimal maintenance and re-calibration.

Applications

  • Monitor potable water recharge areas for water supply
  • Monitor tailing ponds, dewatering activities and water supply levels of mines
  • General site investigations for construction
  • Contaminant plume monitoring on spill sites, remediation sites, chemical storage facilities
  • Landfill sites and hazardous waste storage sites
Questions & Answers
Can this logger read water level accurately in a 1" well?
The Van Essen TD-Diver measures about 0.9 in and is good for deplyoment in 2" and 4" wells. However, if the inner diameter of the well is larger than 22cm, then the logger can be deployed without any interferences.
How does the measurement range translate with Van Essen TD-Diver water level loggers?
The TD-Diver is pressure-rated for various ranges from 10-100m (33-328ft), which refers to the maximum amount of water that is expected to be above the sensor. For example, in a 100m well with a water level of 60m and a sensor deployed at 90m would only require a 30m range logger to perform accurately and prevent damage to the instrument.
Which Van Essen TD-Diver water level logger is the most accurate?
With Van Essen TD-Divers, the sensor's accuracy relates to the range. Lower-range sensors have more accuracy, while higher ranges have lower accuracy.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Side profile of the Van Essen TD-Diver logger.
DI801
TD-Diver water level & temperature logger, 10m range
$717.81
Check Availability
Van Essen TD-Diver Water Level Loggers
DI802
TD-Diver water level & temperature logger, 20m range
$717.81
Check Availability
Van Essen TD-Diver Water Level Loggers
DI805
TD-Diver water level & temperature logger, 50m range
$717.81
Check Availability
Van Essen TD-Diver Water Level Loggers
DI810
TD-Diver water level & temperature logger, 100m range
$717.81
Check Availability
  Accessories 0 Item Selected

In The News

Van Essen Diver-Link Cellular Telemetry System with Diver-Hub

The Van Essen Diver-Link Cellular Telemetry System enables professionals to monitor water level, conductivity and temperature readings from their home or office. The near real-time data allows scientists, managers, and other environmental professionals to monitor flood events, well depths and groundwater levels.  Long-term monitoring allows users to develop trends on ever-changing climate conditions. The Van Essen Divers ( CTD-Diver, Cera-Diver, TD-Diver and Mirco-Diver) work well for monitoring water supply, tailing ponds, dewatering, contaminant plumes and hazardous waste storage sites . The Diver-Link allows users to monitor groundwater via the Diver-Hub Web Portal for real-time management of site data, equipment and water levels.

Read More

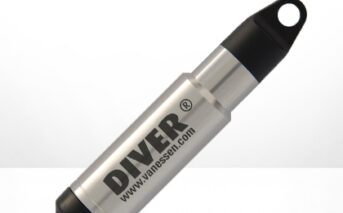

Van Essen TD-Diver: Robust Level Logger Ups Data Efficiency
